Showing all 15 results
Default sorting
Sort by popularity
Sort by average rating
Sort by latest
Sort by price: low to high
Sort by price: high to low
Read more

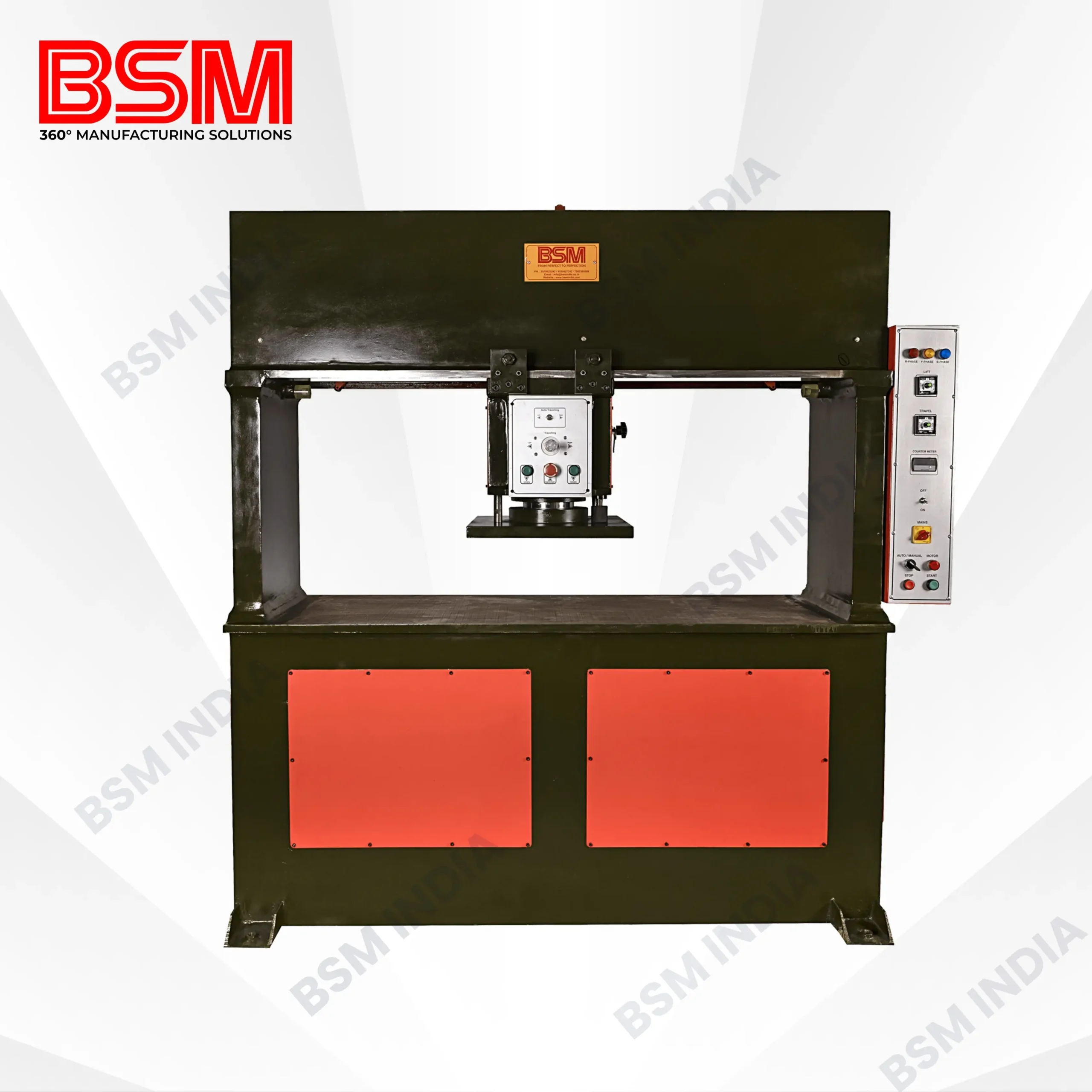

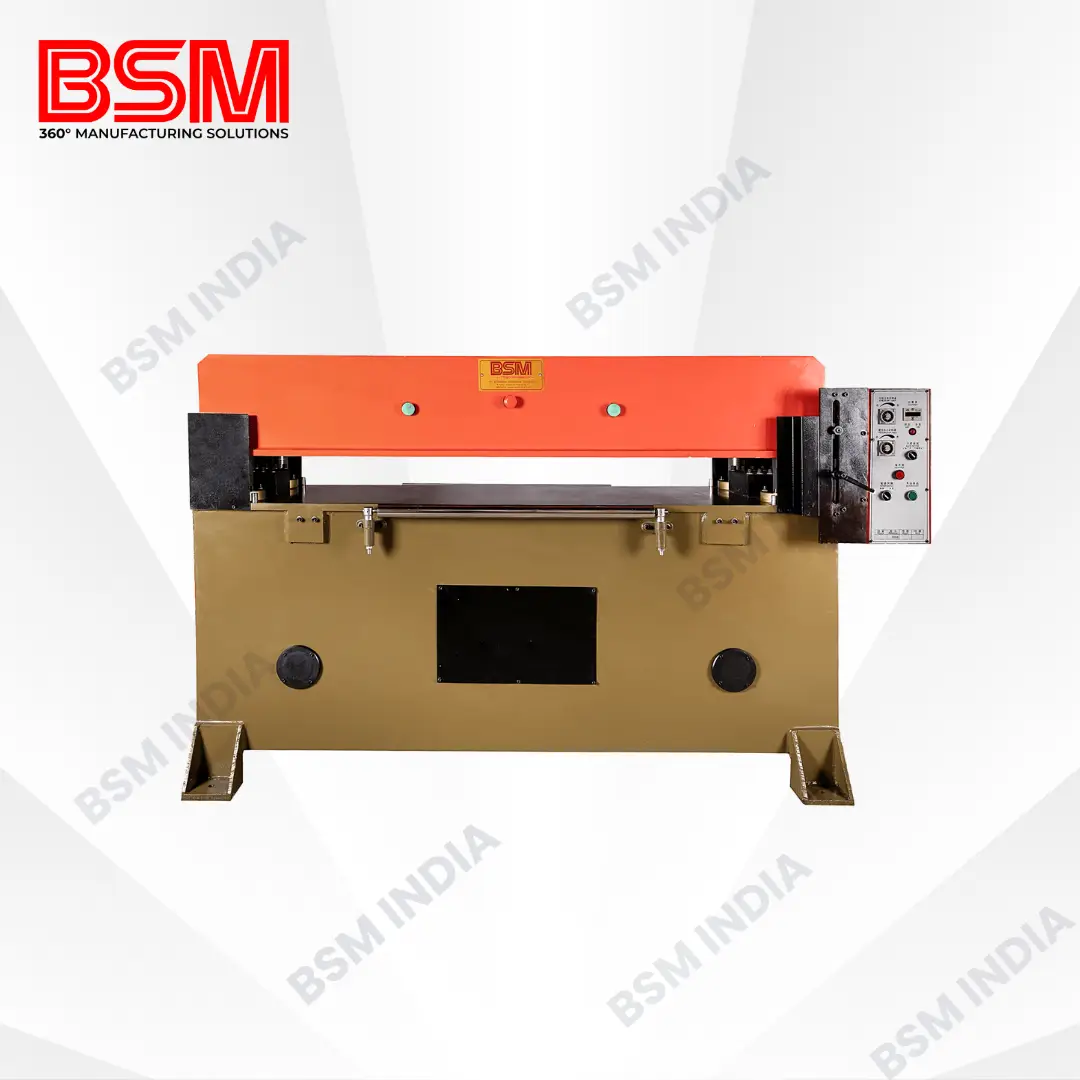

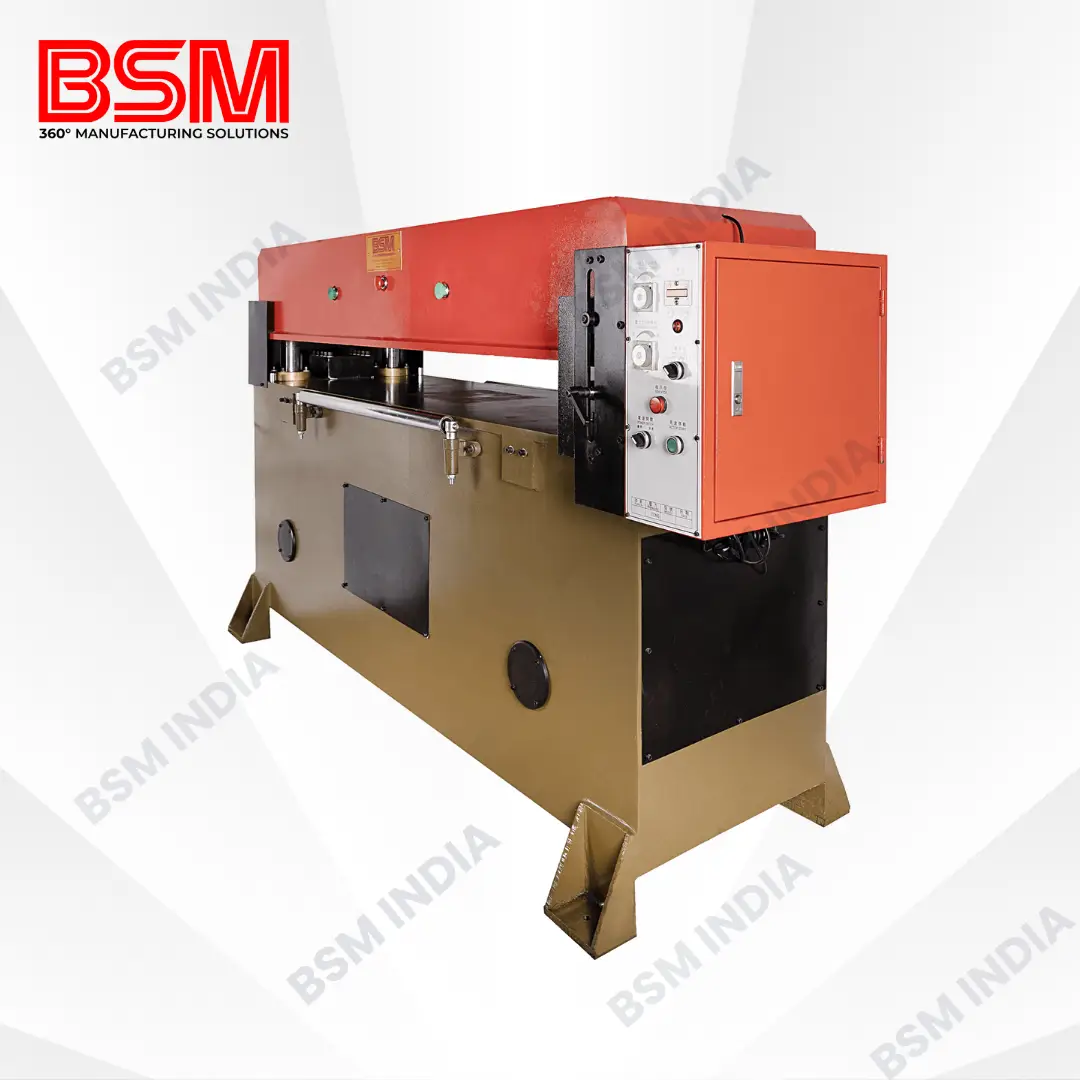

Travel Head Cutting Press (25 ton) Heavy-duty
Machine Specifications
Maximum Cutting Force
25 Ton
Area of Working Area
60 x 20 Inch
Cutting Head Area
19 x 19 Inch
Stock Adjusting Range
Up to 6 Inch
Pressure Cylinder
Double Cylinder
Motor
3 HP, 1440 RPM (Bharat Bijli / Crompton / ABP)
Hydraulic Valve Pump
Yuken (Branded)
Direction Valve
Yuken (Branded)
Hydraulic Oil Capacity
80 Litres
Punching Board Size
60 x 20 x 3 Inch
Machine Size
84 x 84 x 30 Inch
Electronics Parts
L&T and Schneider (Branded)
Stroke Capacity
In every 3 Seconds
Machine Weight
1300 Kg
Read more

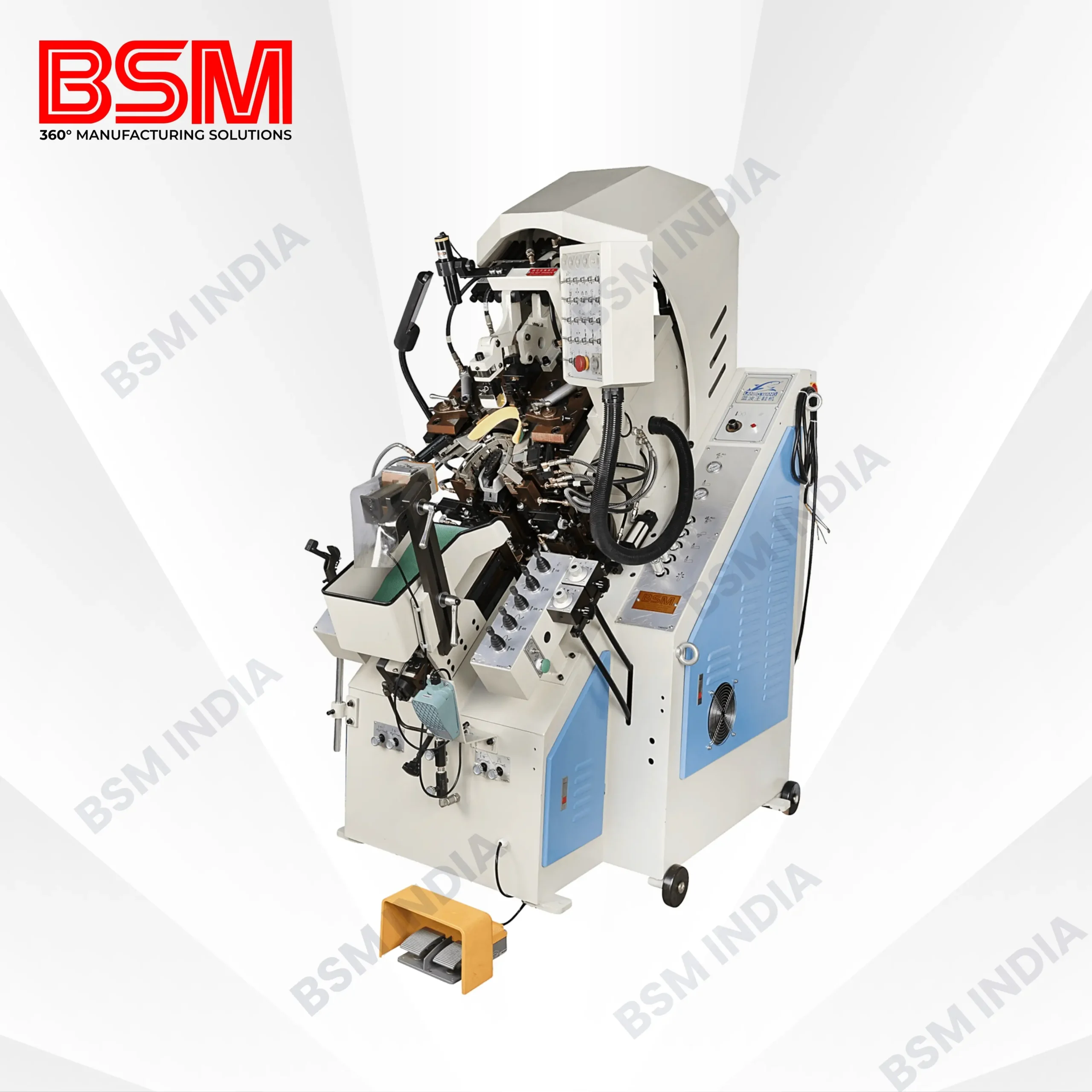

Hydraulic Toe Lasting Machine
Machine Specifications – Model No. BS-737A
Dimensions (LWH)
1710 x 950 x 1950 mm
Capacity
1500 (Pairs)/8 Hr
N.W. (Net Weight)
1100 Kgs
Power
2 HP
Heating
1000 W
Oil Pressure
50 kg/cm²
Hydraulic Oil
100 litres (68 no.)
Read more

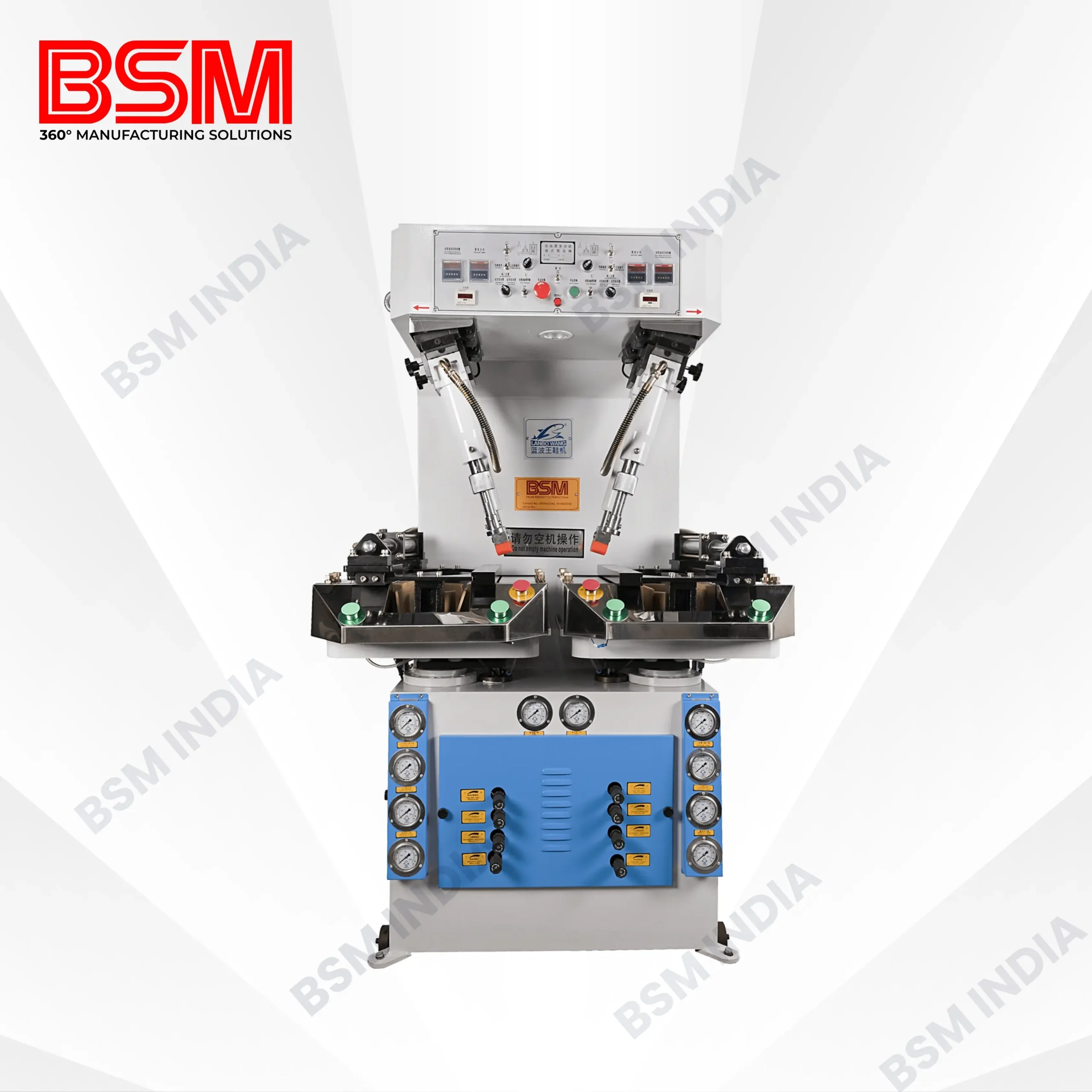

Hydraulic Sole Attaching Machine
Machine Specifications
Motor Power
3 HP
Power
2.5 KW / 3 Phase
Oil Pressure
60 kg/cm²
Production Capacity
2000 Pairs / 8 hours
Dimensions (LWH)
1200 x 1150 x 1930 mm
Weight
950 KG
Read more

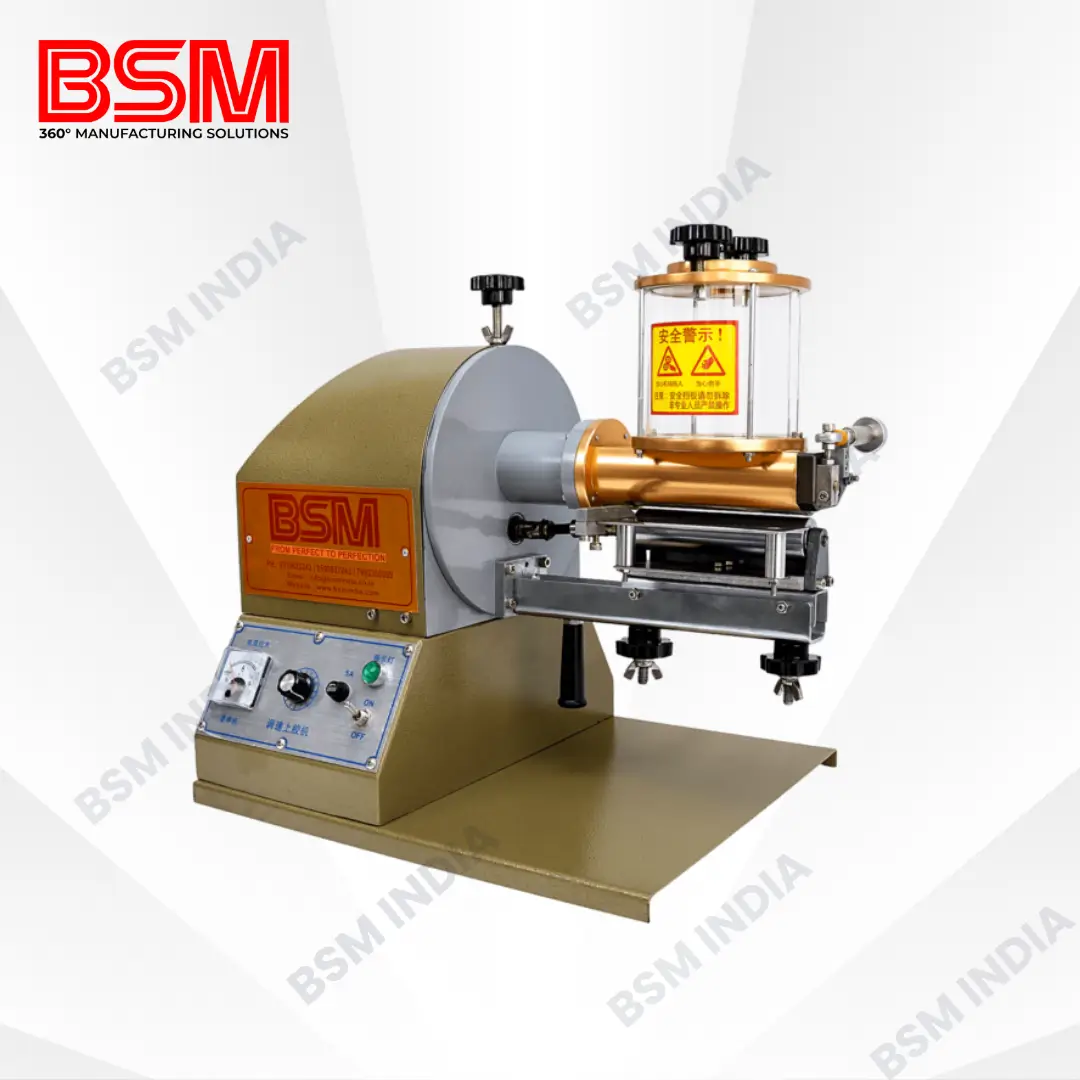

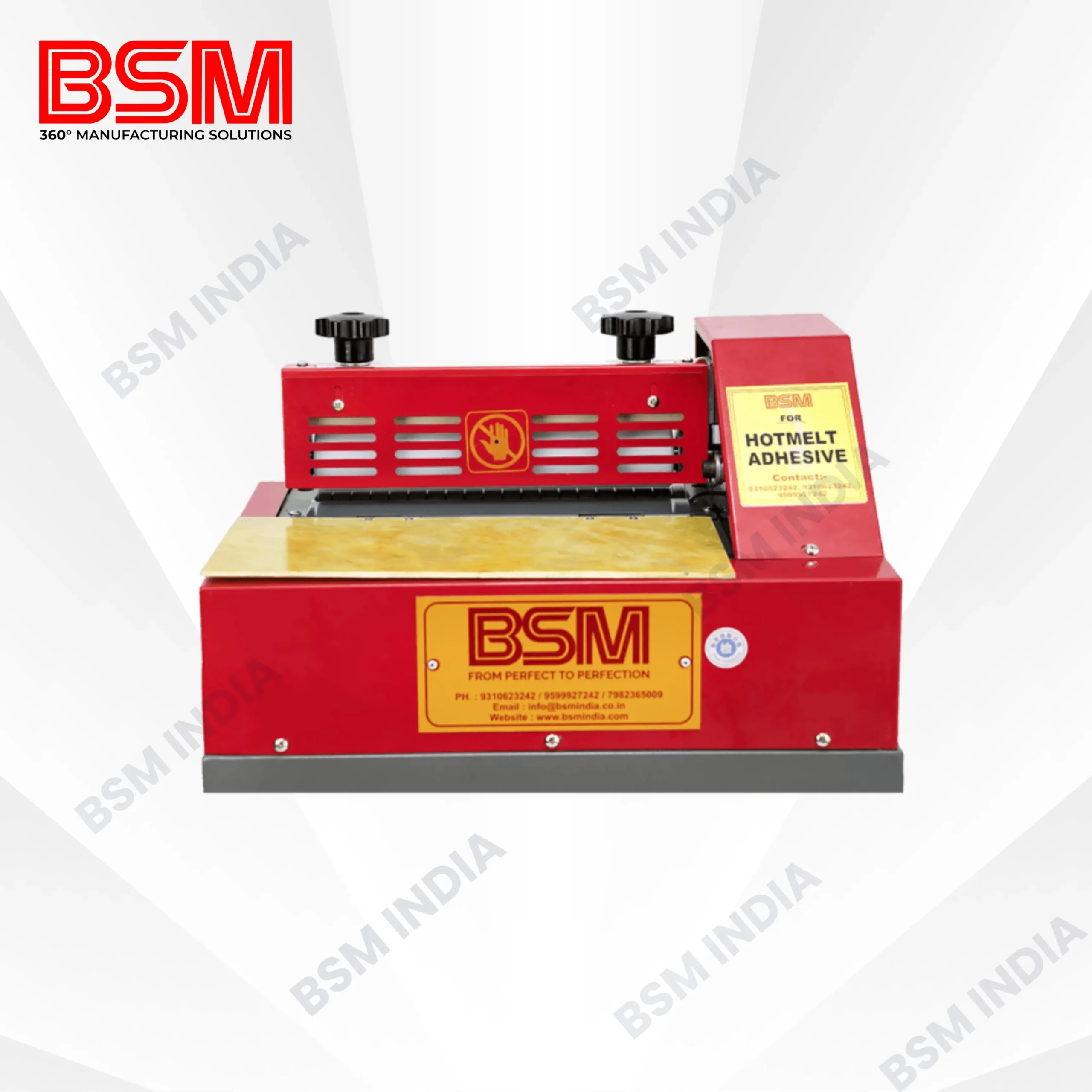

Hotmelt Roller Coater (12 Inch)
Machine Specifications – Model No. BS-831 / 831-2 / 831-3
Tank Capacity
3 kg / 5 kg / 7 kg
Melting Rate
8 kgs/hour
Total Power
2.5 kW
Coating Width
300 mm / 400 mm / 500 mm
Max Operating Temperature
250°C
Power Requirement
220V / 50Hz, Single Phase
Machine Dimensions
515 x 900 x 430 mm
Read more

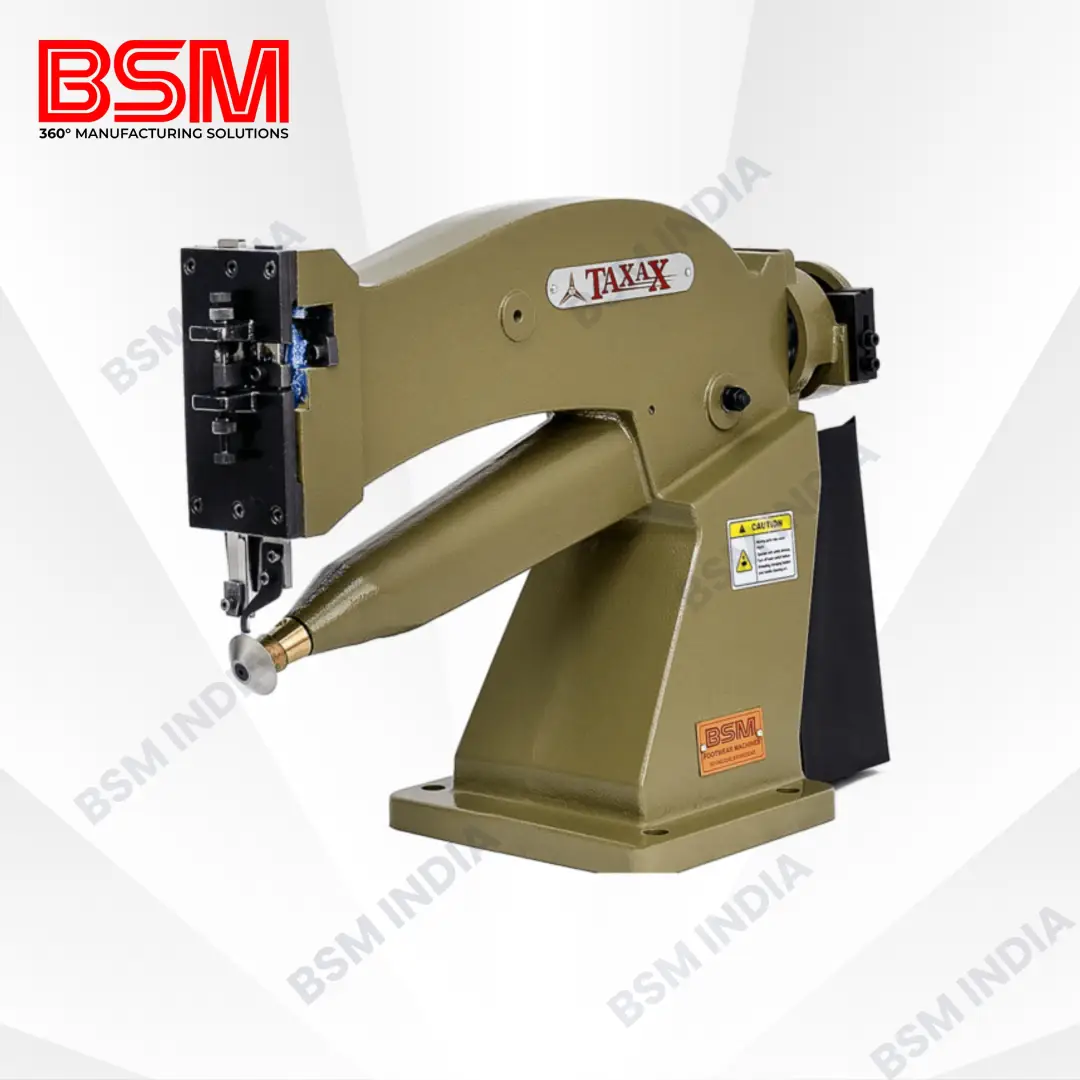

Round Blade Edge trimming Machine
Machine Specifications
– Model No. BS-902
Blade Speed
3000 S.P.M
Weight
27 kg
Dimensions
570 x 260 x 510 mm
Power
250W
Voltage
220V, Single Phase
Read more

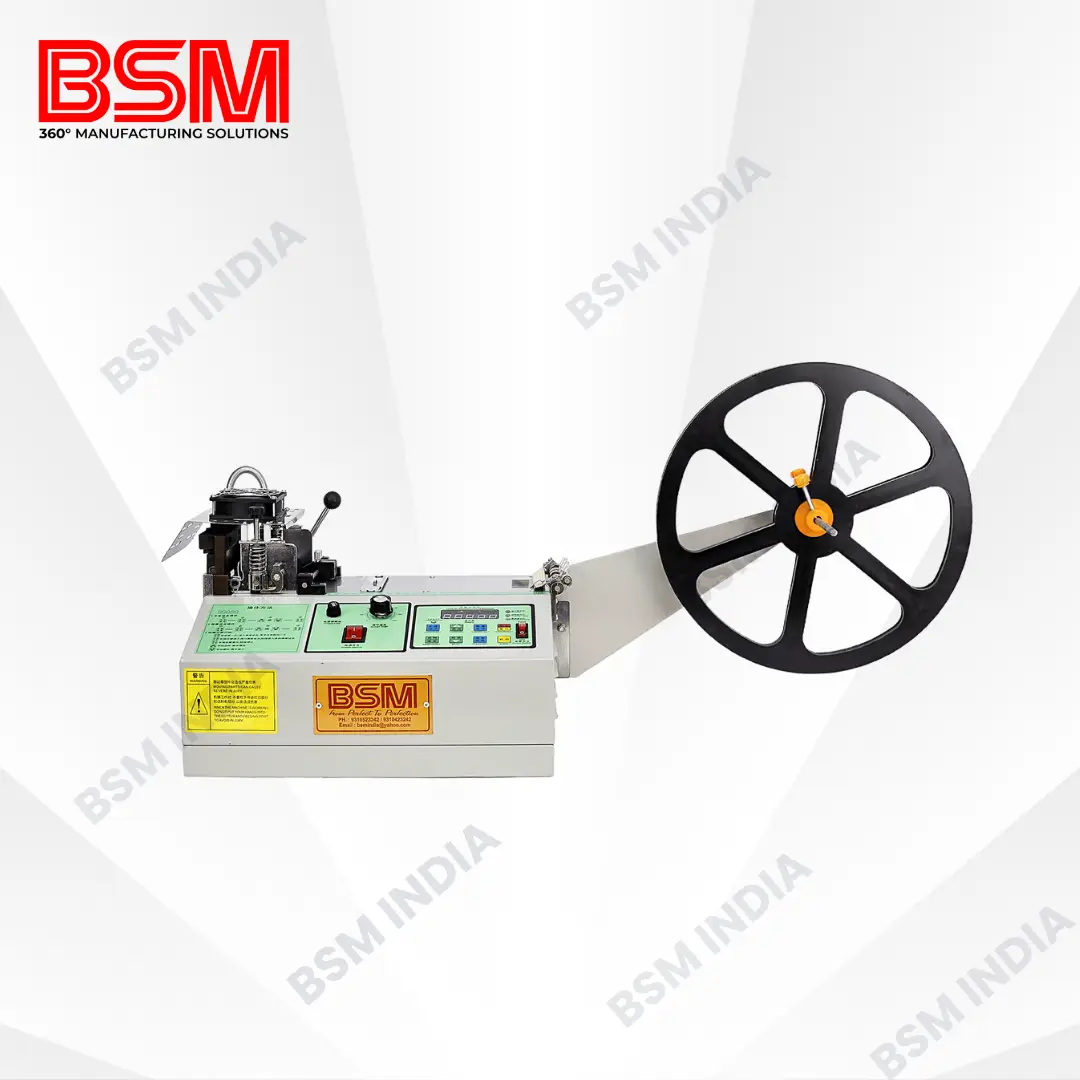

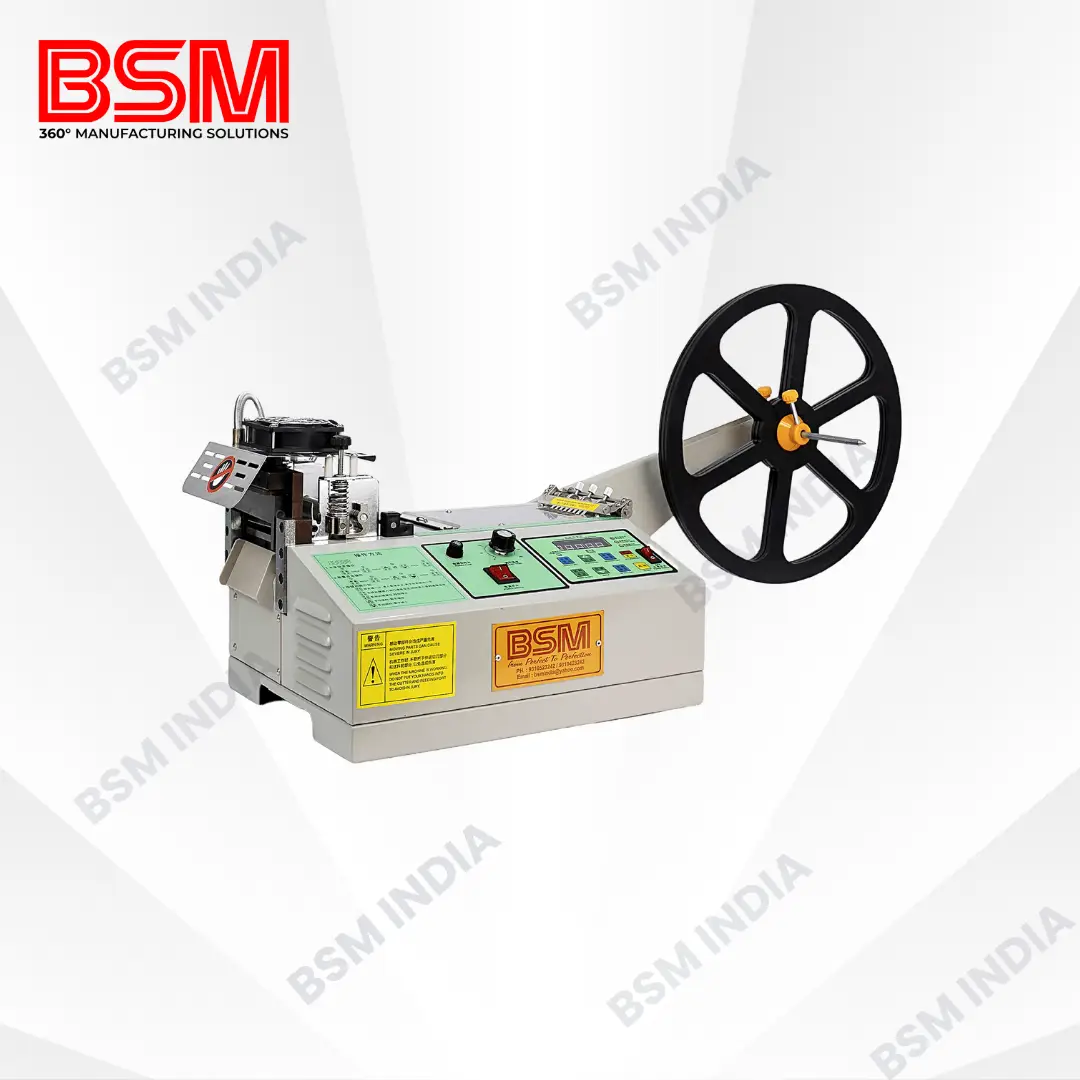

Tape Cutting machine [Electronic]
Machine Specifications – Model No. BS-369
Knife Temperature
0 – 350℃
Knife Type
Hot & Cold
Voltage
AC110 – 220V
Power
260 W
Cutting Length
1 – 99999 mm
Max Cutting Speed
120 P/min
Cutting Width
90 mm
Read more

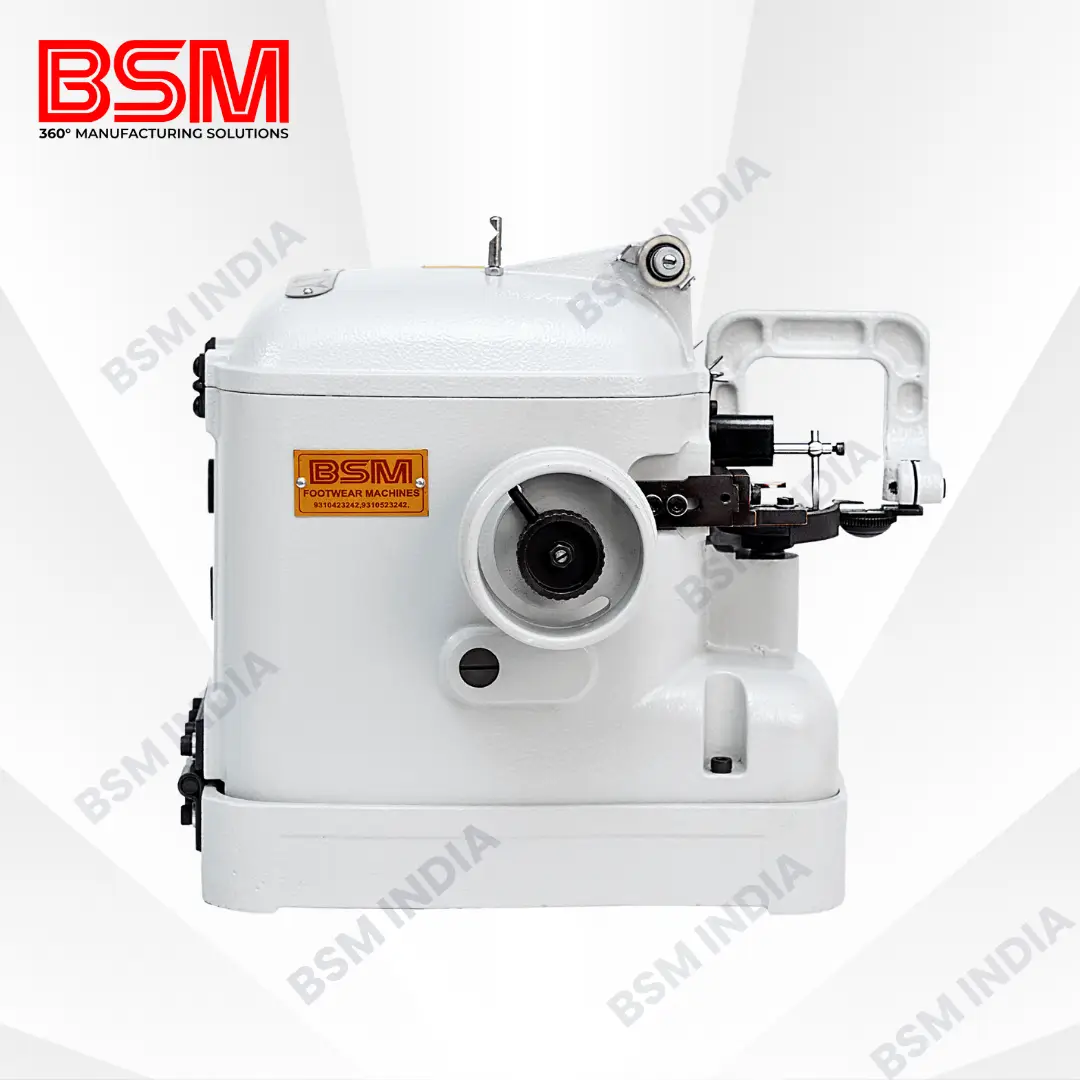

Strobel Sewing machine (Disc feed)
Machine Specifications – Model No. BS-600
Sewing Speed
1800 s.p.m
Needle Type
DPx5
Stitch Length
6 mm
Height of Presser Foot
33 mm
Dimension
430 x 450 x 365 mm
Weight
33 KG
No. of Needles
Single needle
Read more

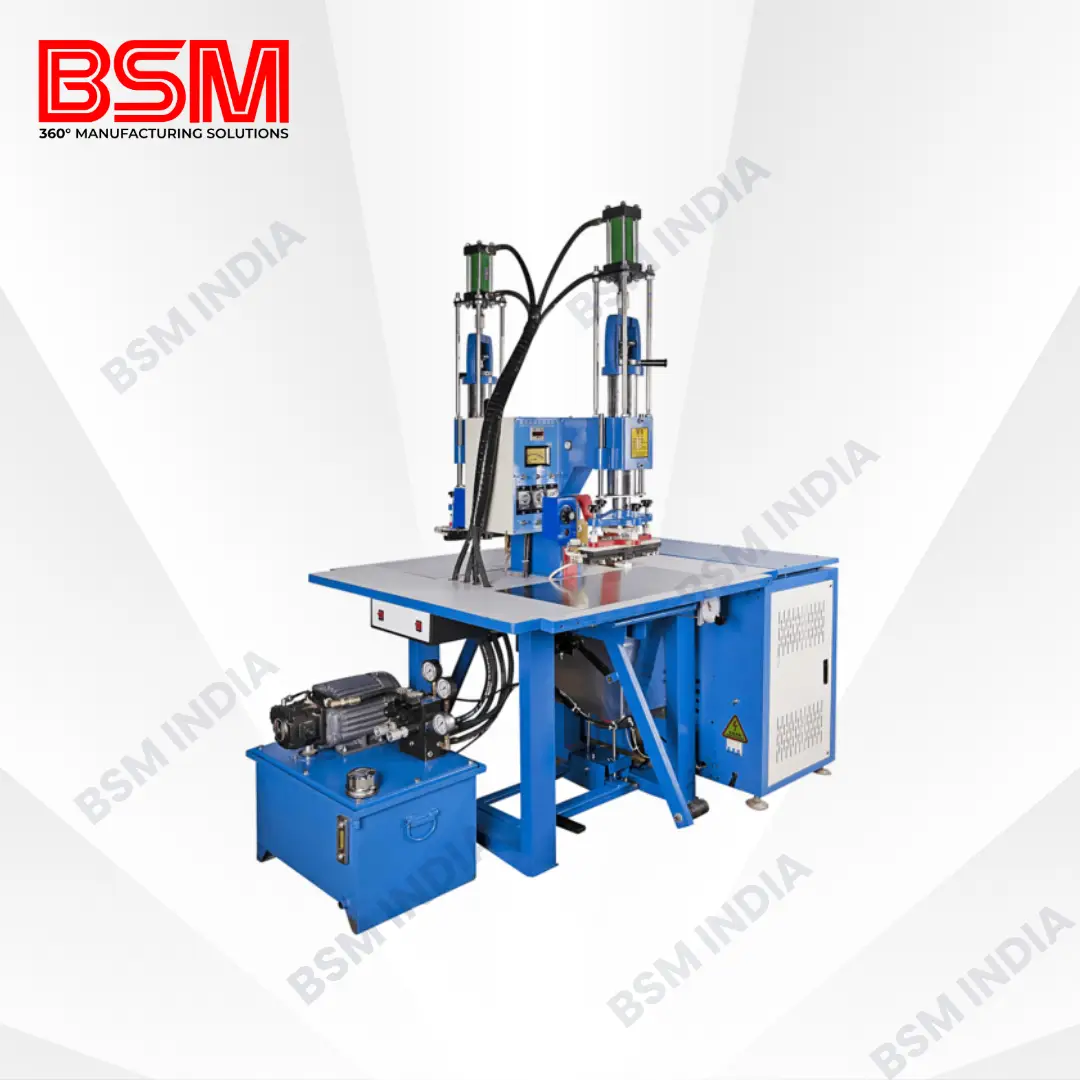

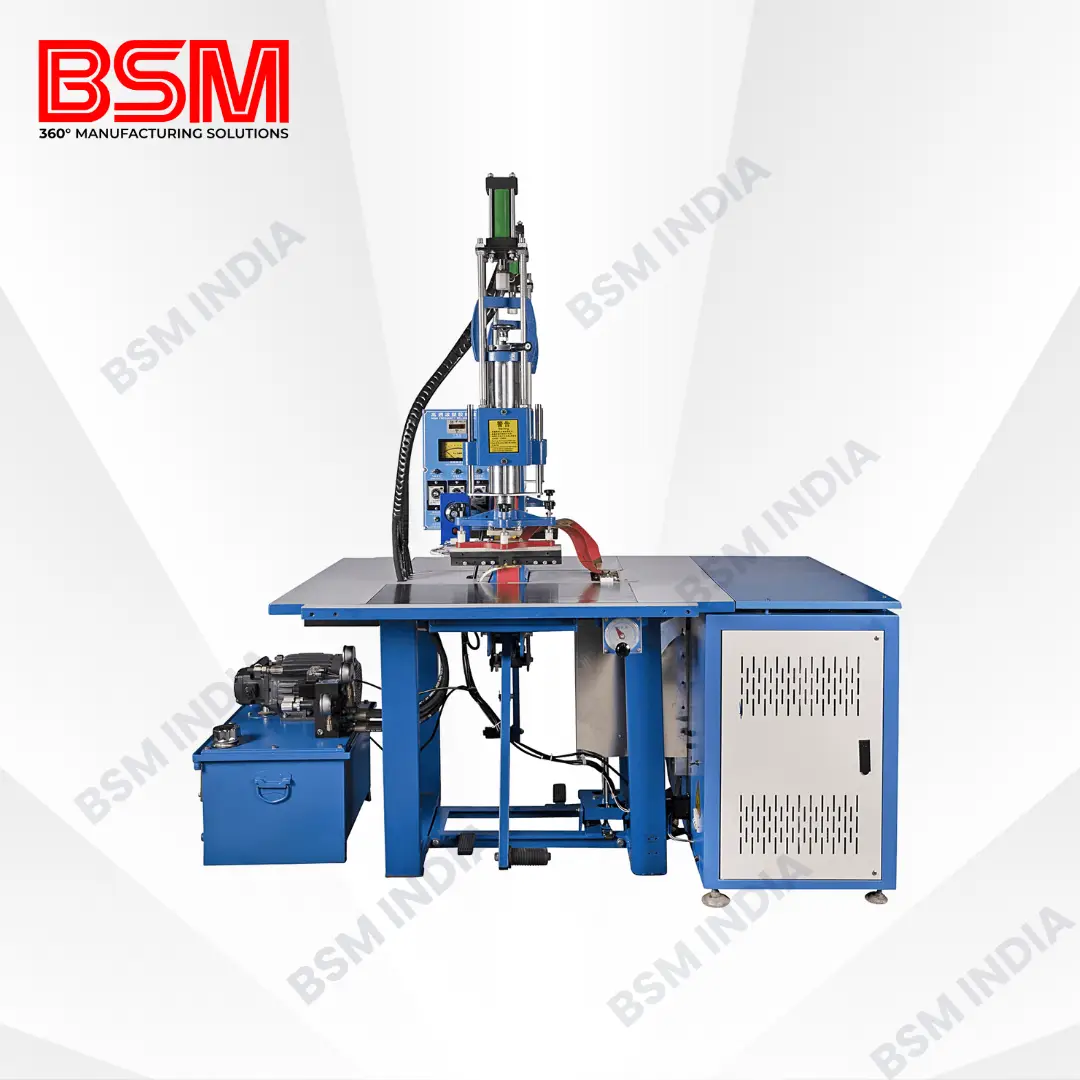

High Frequency Welding Embossing Machine (hydraulic)
Machine Specifications – Model No. BS-602
Power
8 KW
Voltage
220V or 380V
Input Power
8.5 KVA
Frequency
27.12 or 40.68 MHz
Maximum Electrode Spacing
160-220 mm
Working Table
350 x 700 mm or 400 x 700 mm
Temperature Control Range
50-300°C Adjustable
Welding Time
0-10s Adjustable
Table Size
1070 x 1210 mm
Oil
Hydraulic 68no
Oil Capacity
30 Ltr.
Dimension
1070 x 1680 x 1560 mm
Machine Weight
320 KG
Read more
Hydraulic 4 – Column Beam Cutting Press
Machine Specifications – Model No. BS-750
Maximum Cutting Force
400 KN (40 Ton)
Tension Distance
60-160 mm
Area of Work Table
1600 x 580 mm
Stroke Adjusting Range
5-100
Motor Power
2.2 KW
Weight (Approx.)
2000 KG
Oil Tank Capacity
60 Ltrs
Read more

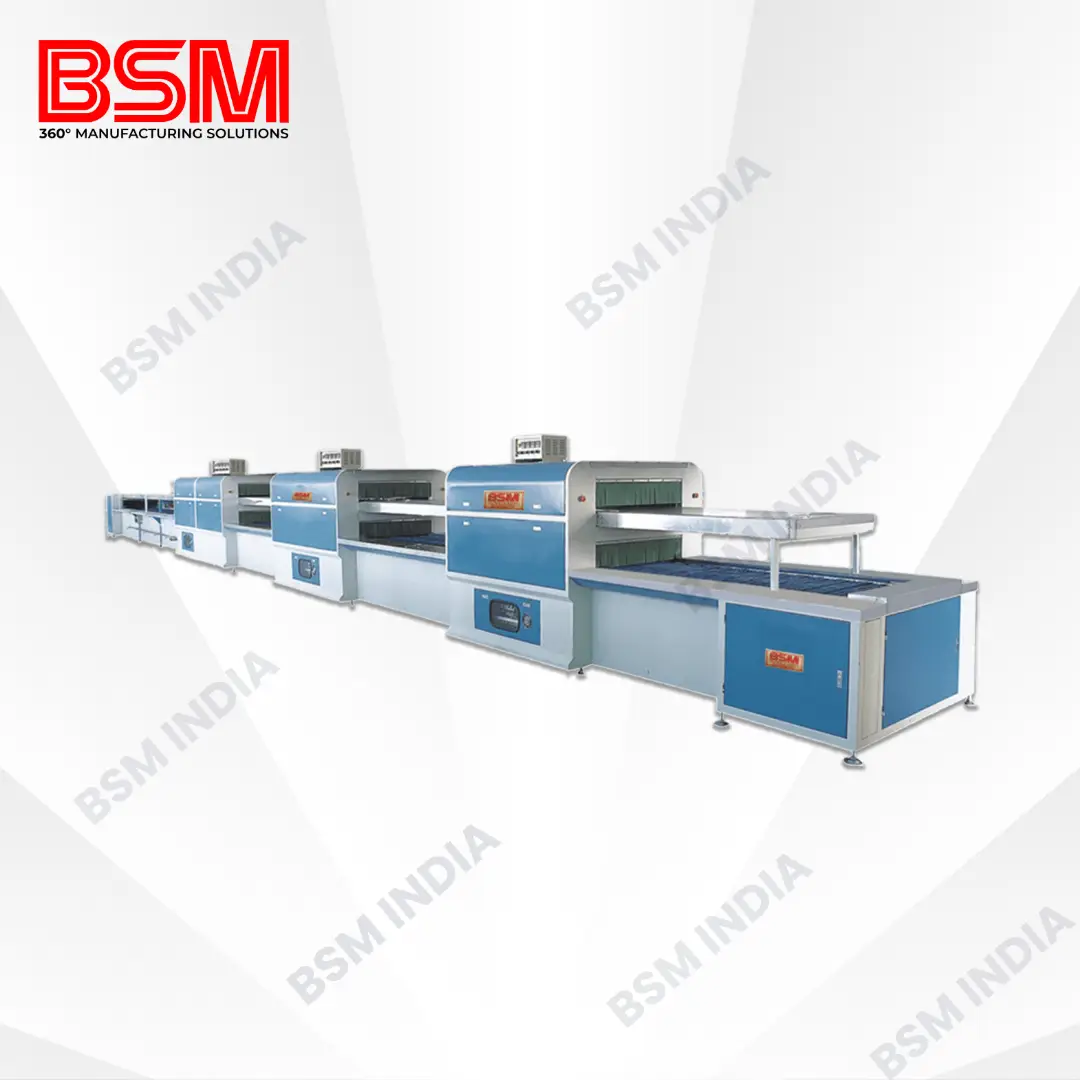

Double Decker Pasting / Shoe Assembly Conveyor
Read more

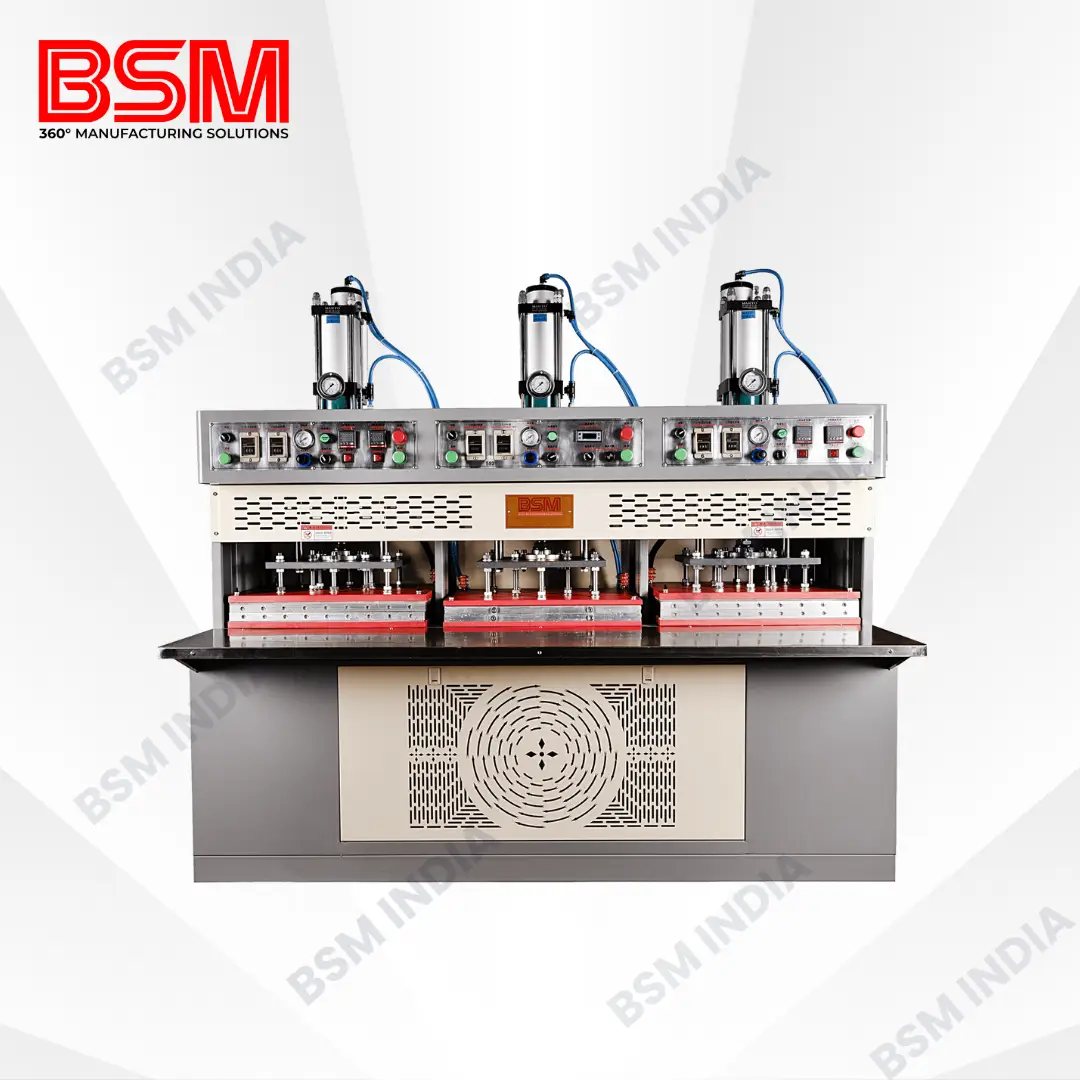

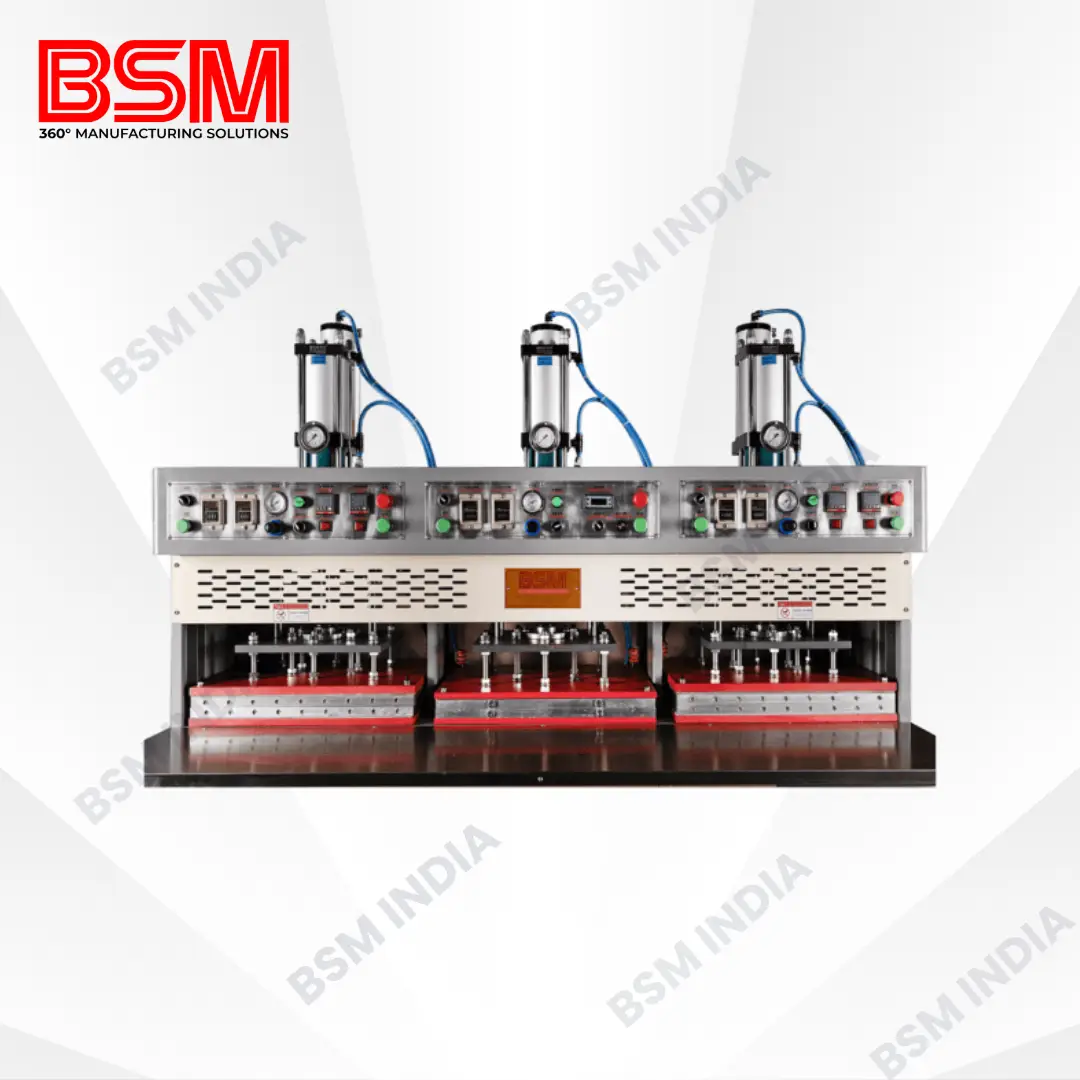

TPU Fusing Machine
Model No.
BS-605
Voltage
AC380V/50HZ
Power
20KW 3 Phase
Running Load
12-13 Kw
Air Pressure
0.5 MPA
Chiller Capacity
2 Ton
Temperature Accuracy
+3°C
Plate Pressure
12 Ton (Double Pressure)
Working Area
406 x 609 mm
Fusing Time
8-30 Second (Depends On The Type of Material)
Heating Plate
Top & Bottom Heating
Cooling Plate
Top & Bottom Cooling
Machine Size (mm)
2000 x 1930 x 863 mm
Net Weight
1450 kg
Read more

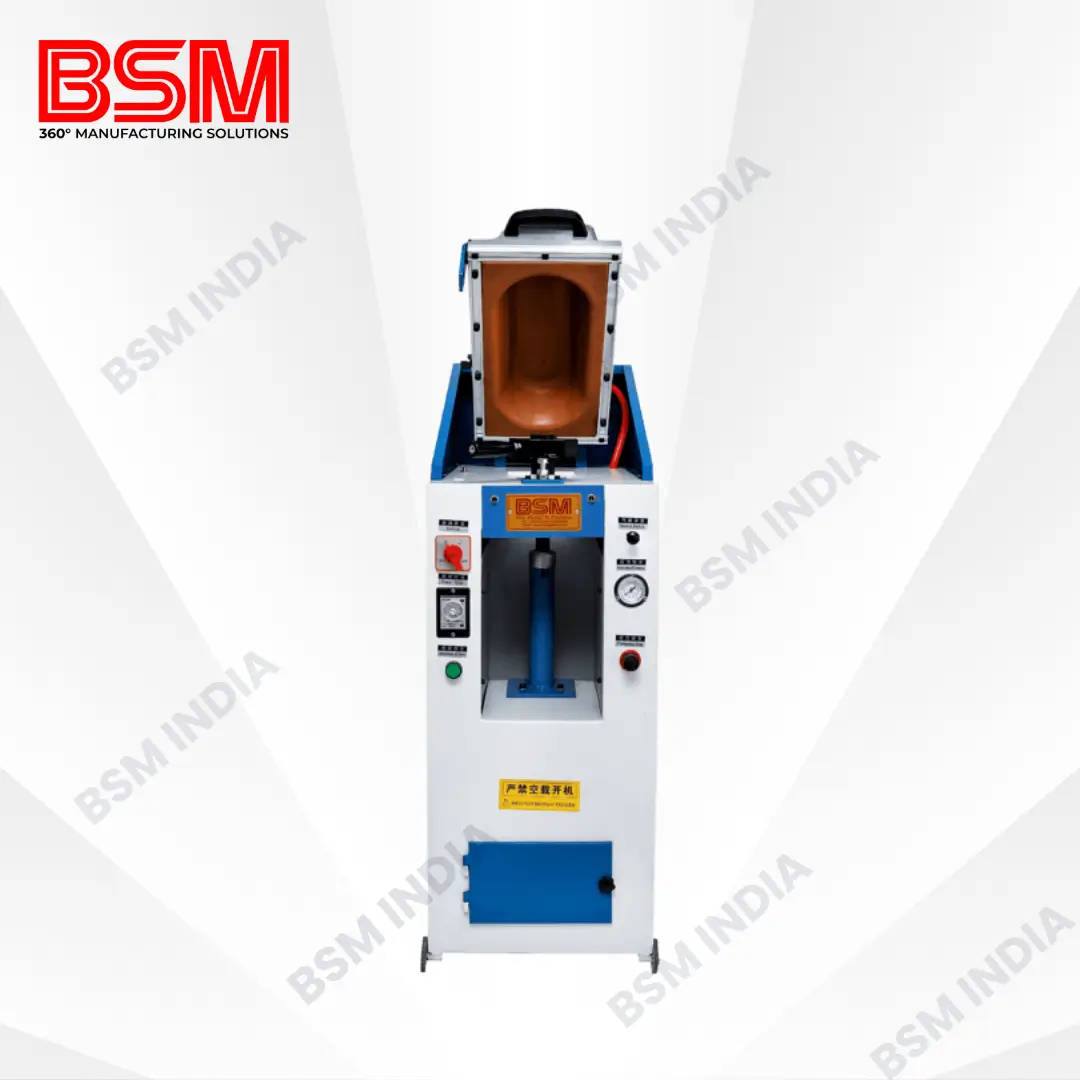

Counter Moulding Machine (Hot & Cold)
Model No.
BS-516
Dimension
890 x 1480 x 2000mm
Weight
600 Kg
Voltage
220V/50HZ
Power
2.7 kW
Air Pressure
0.6 Mpa
Capacity (Pairs/8hr)
1500
Read more

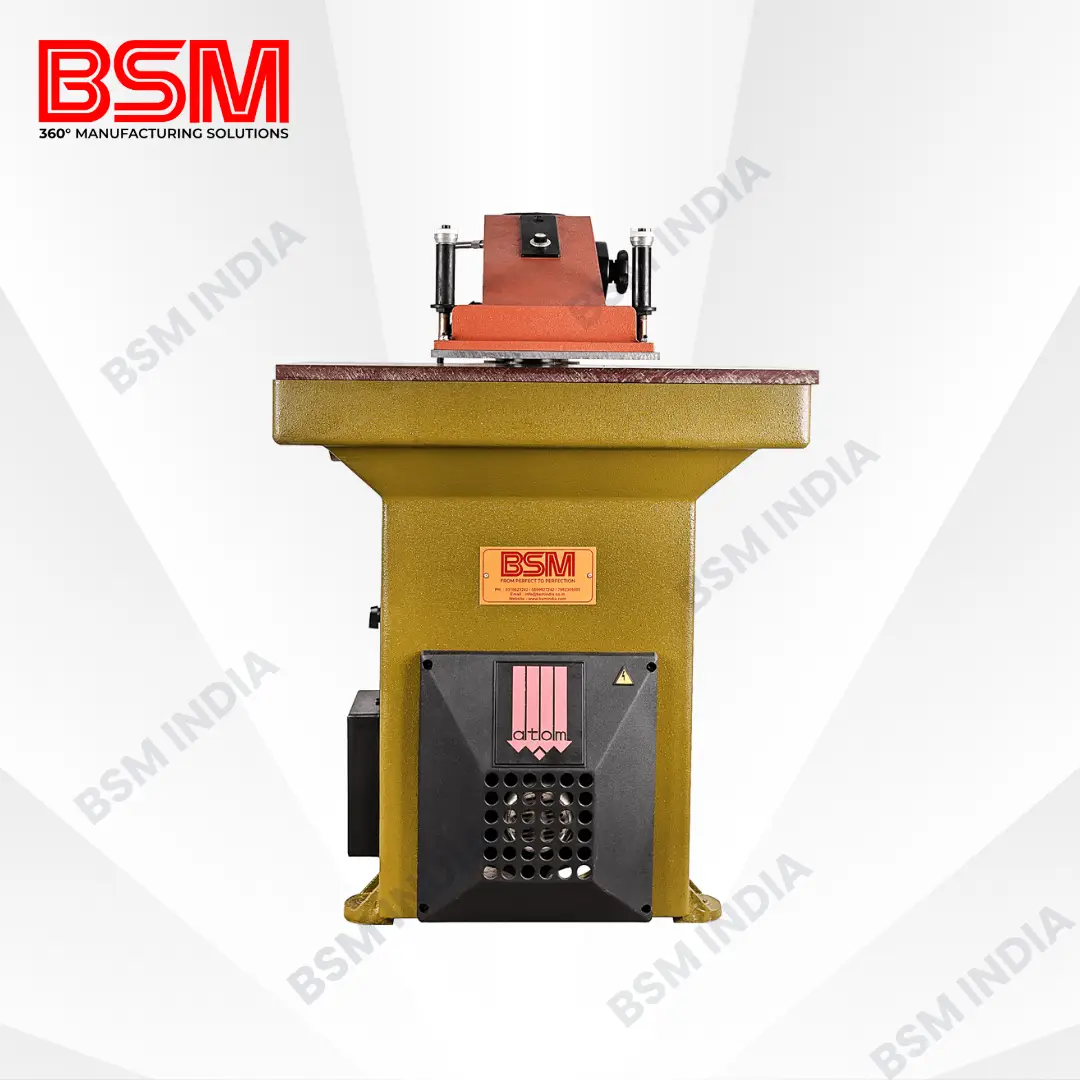

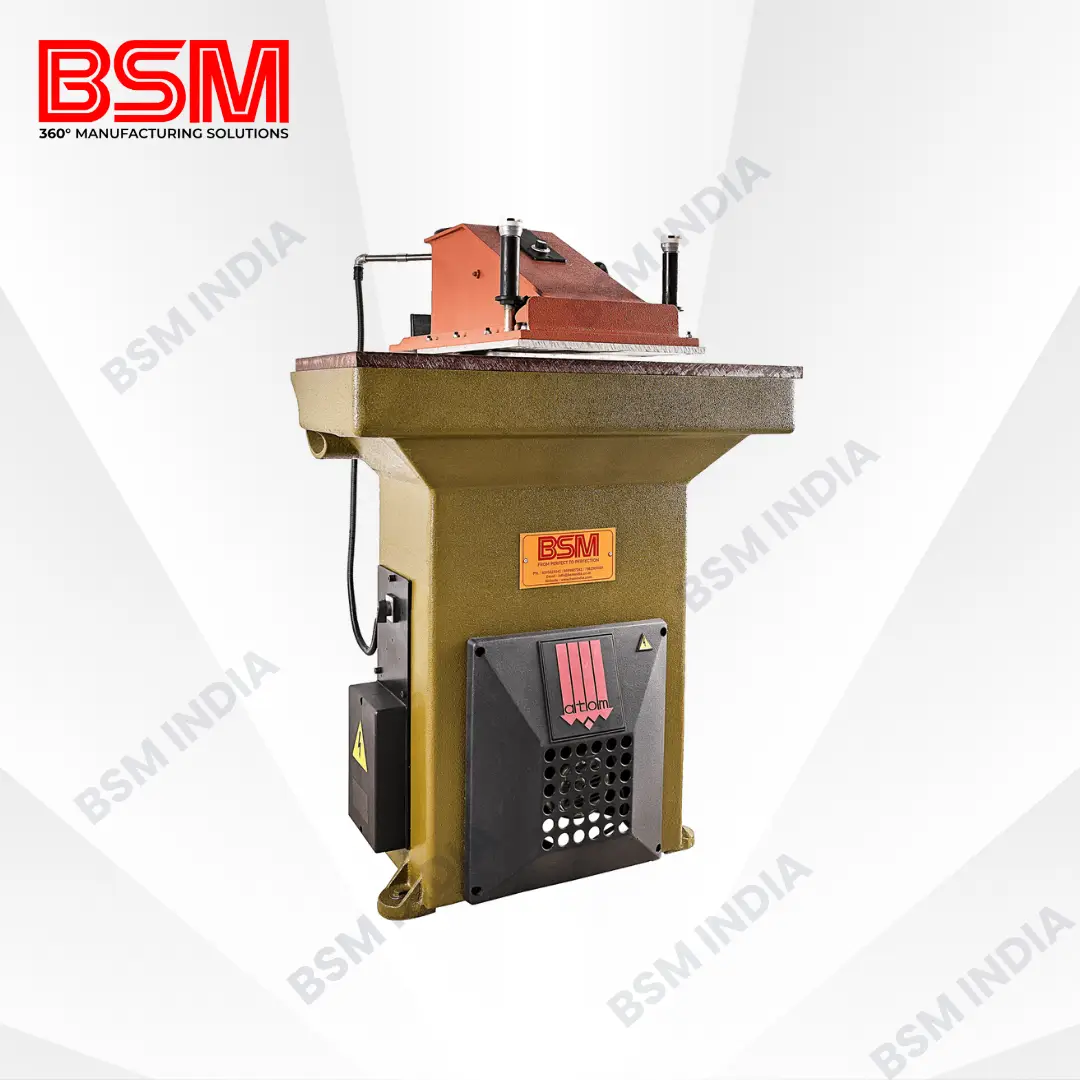

Swing Arm Cutting Press
Model No.
BS-200
Max. Cutting Force
22 Ton
Area of Work Table
900 x 430mm
Cutting Area
370 x 490mm
Motor Power
750W
Machine Dimensions
900 x 820 x 1400mm
Packing Size
1050 x 1000 x 1500mm
Weight
740Kg
Read more

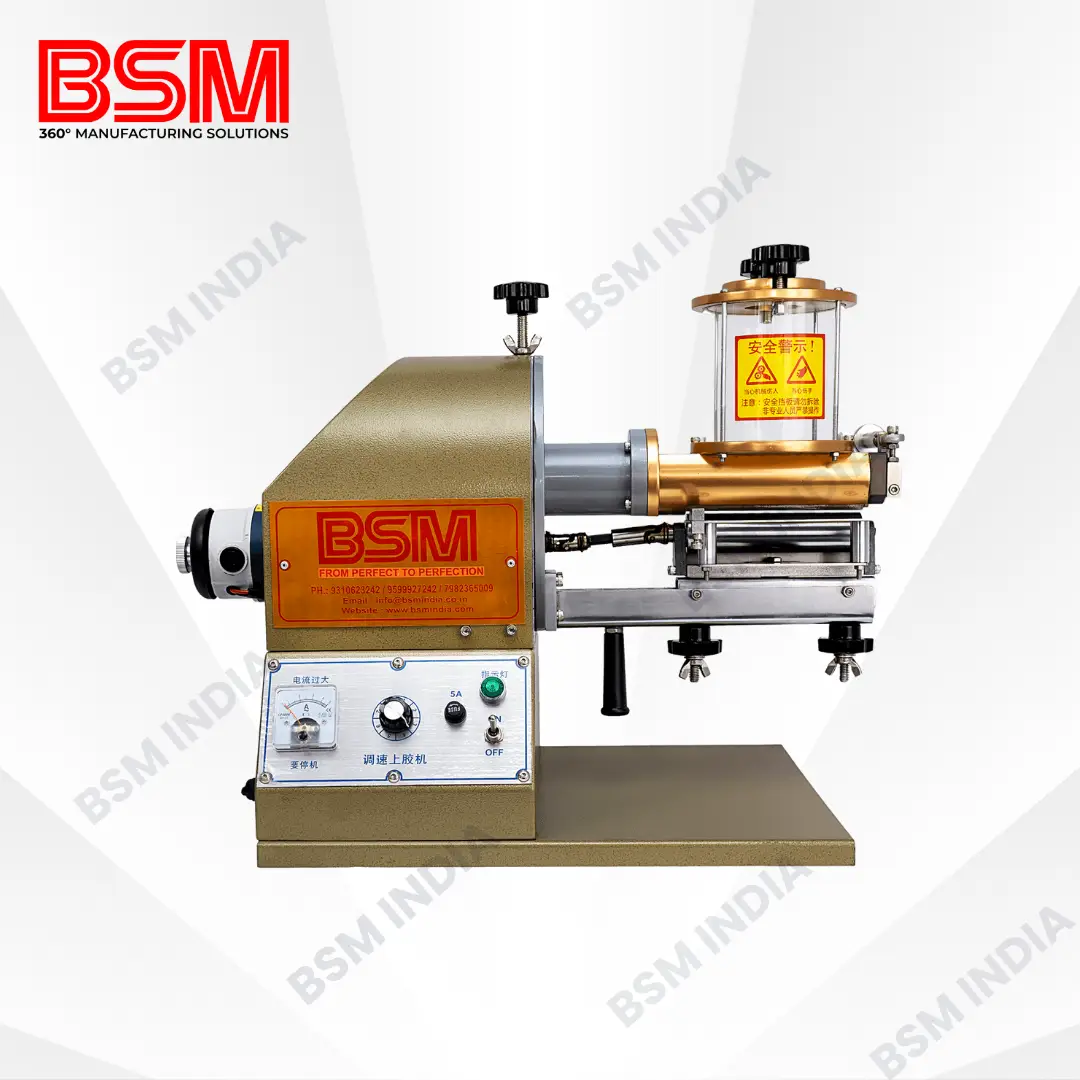

Glass jar Applicator [for Rubber based Adhesives]
Model No.
BS-003
Power
220V 50Hz
Motor Power
180 W (1/6 hp)
Roller Width
150 mm
Outline Dimensions
425 x 375 x 440 mm
Weight
32 Kg
Read more

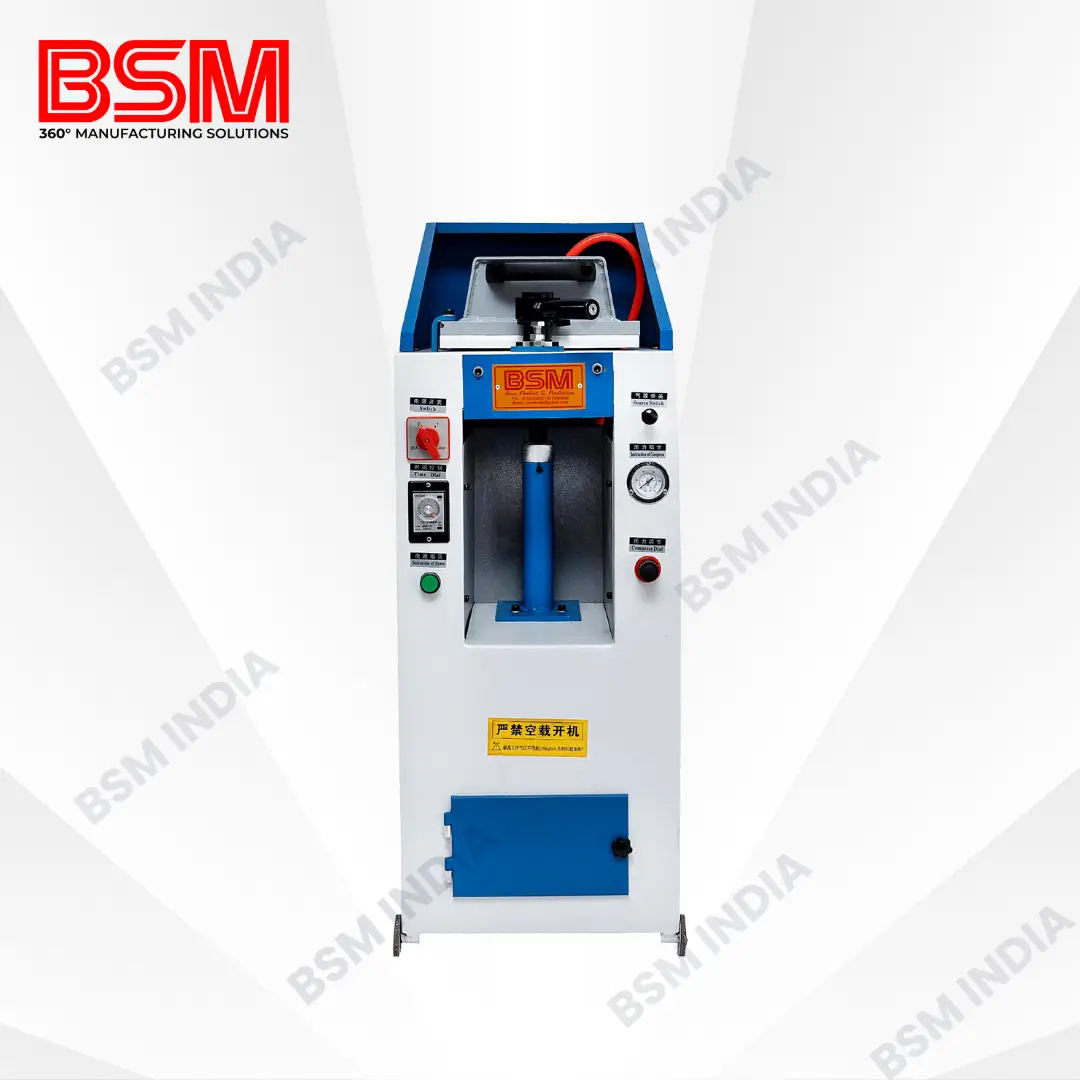

Cover Type Sole Press (pneumatic)
Model No.
BS-2003
Power
220V 50Hz
Air Pressure
6-7 KG/cm²
Compression Time
8-10 s
Efficiency
180 pair/hour
Outline Dimensions
440 × 780 × 1130 mm
Weight
75 kg
