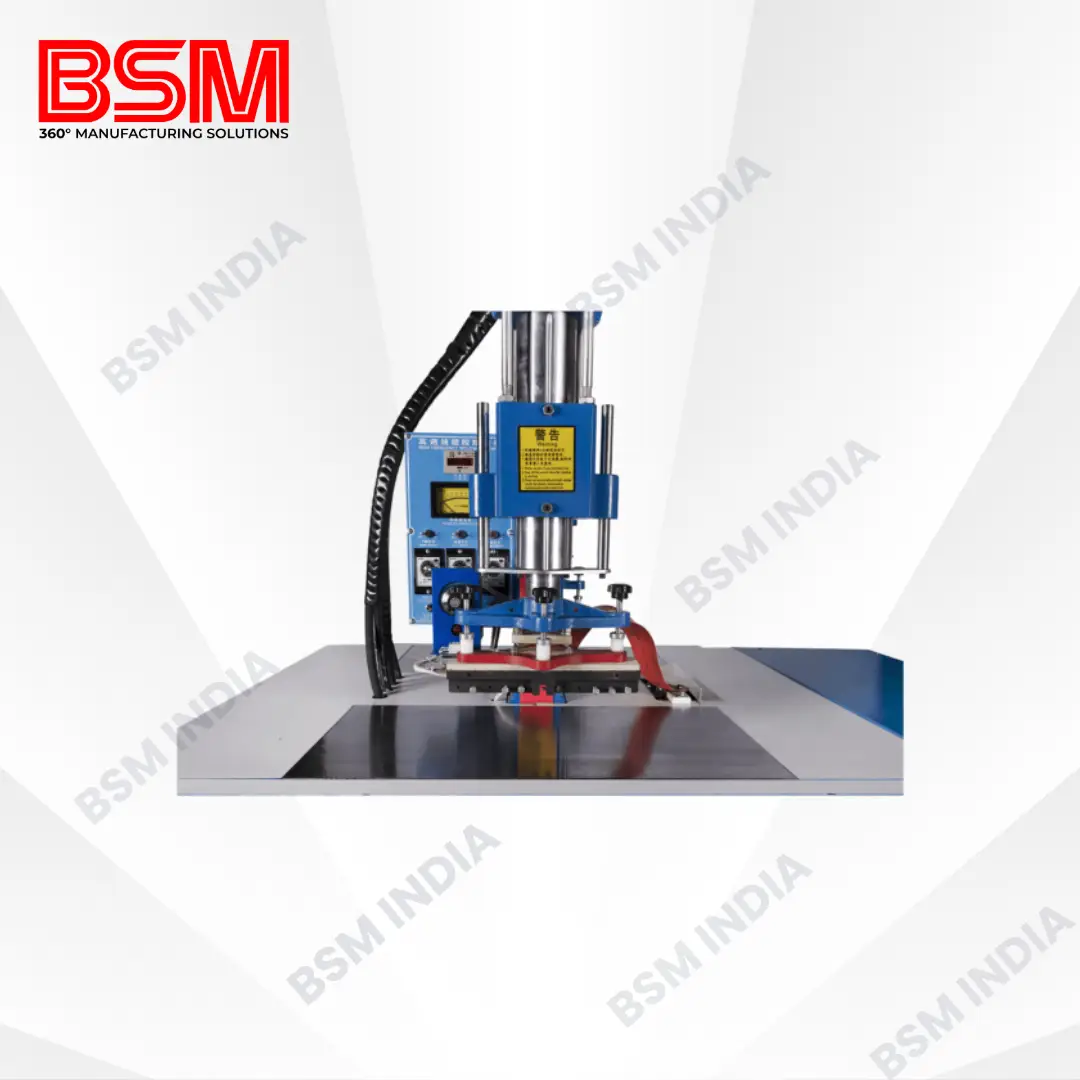

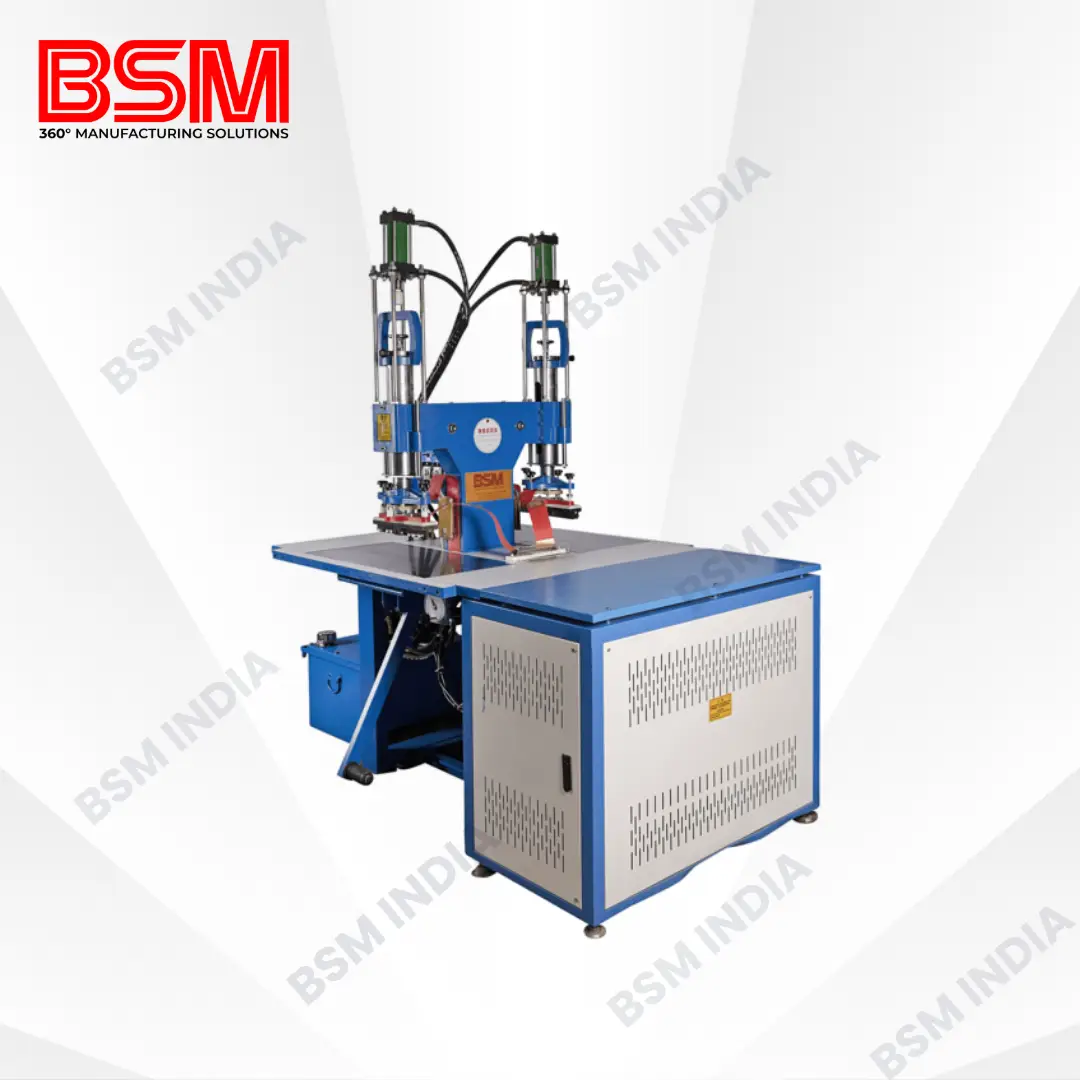

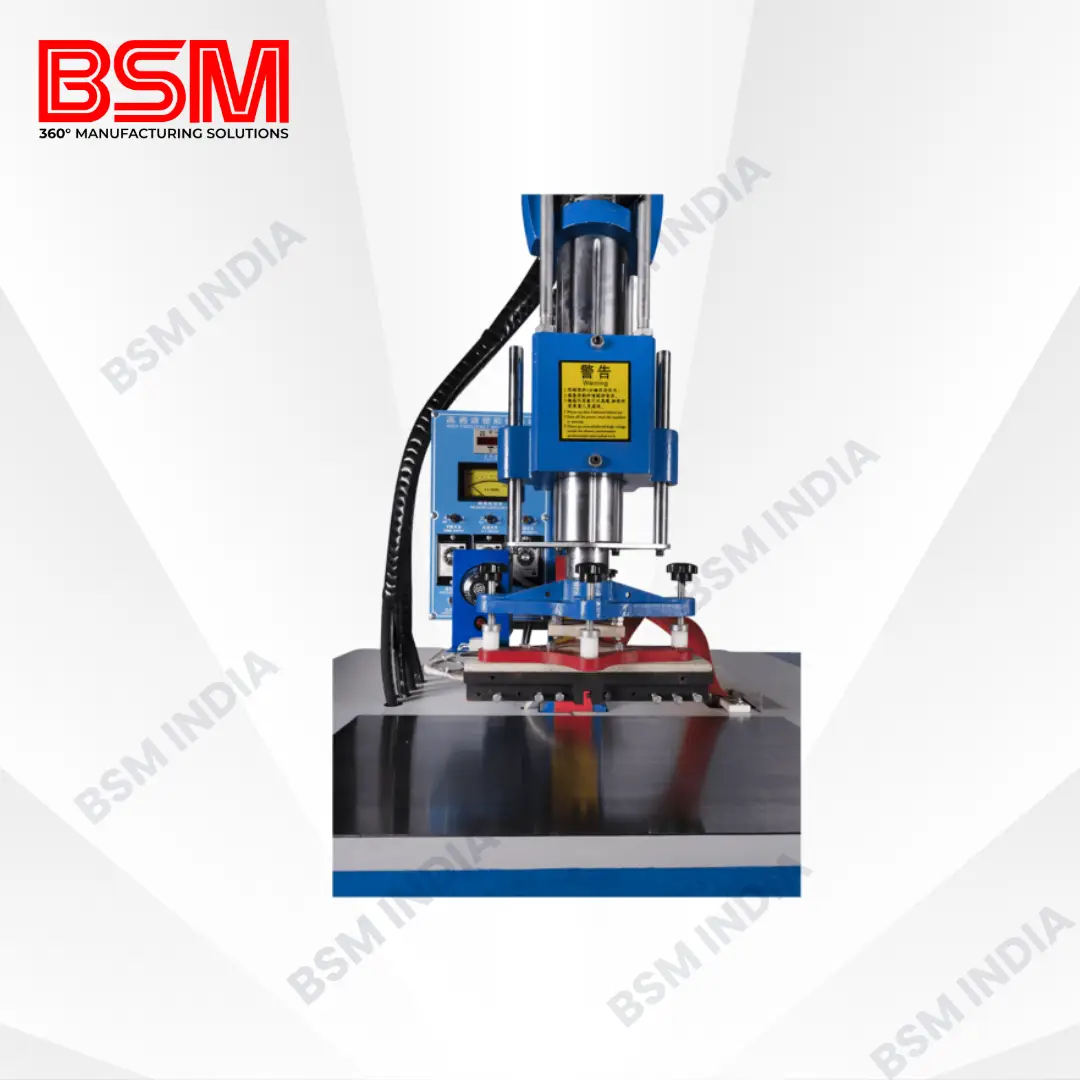

High Frequency Welding Embossing Machine (hydraulic)

Product Description of High Frequency Welding Embossing Machine

The High Frequency Welding Embossing Machine (Hydraulic) is an advanced industrial solution designed for PVC welding, embossing, and branding applications, particularly in the footwear, packaging, and plastic goods sectors. Engineered with a special mechanical structure and anti-spark safety features, this machine delivers high-frequency precision welding, consistent results, and long-term durability — even with complex materials and delicate designs. Ideal for operations requiring accurate alignment, secure bonding, and fast embossing, this machine is a smart investment for manufacturers prioritizing quality and safety.

Technical Specifications of High Frequency Welding Embossing Machine

1. Model No.: BS-602
2. Power Output: 8 KW
3. Voltage Options: 220V / 380V
4. Input Power: 8.5 KVA
5. Operating Frequency: 27.12 MHz or 40.68 MHz
6. Max Electrode Spacing: 160 – 220 mm
7. Working Table Size: 350 x 700 mm / 400 x 700 mm
8. Temperature Control Range: 50 – 300°C (Adjustable)
9. Welding Time: 0 – 10 seconds (Adjustable)
10. Table Dimensions: 1070 x 1210 mm
11. Oil Type: Hydraulic 68 No.
12. Oil Capacity: 30 Litres
13. Machine Dimensions: 1070 x 1680 x 1560 mm
14. Machine Weight: 320 kg

Key Features of high frequency welding machine

1. Anti-Spark Electric System for Safe Operation: This high frequency welding machine is equipped with an advanced anti-spark system to prevent electrical hazards, making it reliable for high-volume industrial use.
2. Built-in Operator Safety Devices: Safety features like automatic emergency protection and shielding mechanisms ensure the well-being of your team during operation.
3. Uniform Pressure via Special Mechanical Structure: Engineered with precision, the unique structure delivers even hydraulic pressure, perfect for PVC welding and embossing consistent branding designs.
4. Easy Tuning & Protective Circuitry: Quick tuning functions allow fast changeovers, while a special protection circuit prevents damage from voltage fluctuations — increasing machine lifespan.
5. Hydraulic Pressure Device for Precision Welding: The integrated hydraulic system provides accurate pressure control, making this machine ideal for welding complex patterns and intricate product shapes.
6. Adjustable Temperature & Welding Time: Customizable settings enable you to fine-tune both heat and cycle time depending on the material and design, boosting productivity and flexibility.
7. Robust Build with Compact Footprint: Despite its industrial capacity, the compact design fits well into modern production floors without consuming excessive space.

Why Choose This High Frequency Welding Machine?

1. Industry-Ready Design: Built for demanding PVC welding applications, this machine delivers fast, flawless results with materials like synthetic leather, plastic films, and rubberized fabrics.
2. Enhanced Safety Standards: Integrated anti-spark system and safety devices significantly reduce the risk of operator injury and machine failure.
3. Reliable for High-Volume Production: With high-frequency output and fast cycle times, it enables efficient, 24/7 operation without compromising on quality.
4. Minimal Downtime & Easy Maintenance: Oil tank access, temperature controls, and branded components ensure smooth operations with less need for technical intervention.
5. Trusted by Footwear & PVC Product Manufacturers: Backed by BSM’s engineering legacy, this machine is trusted by top players in shoe, belt, bag, and synthetic product manufacturing.

High Frequency Welding Embossing Machine is Suitable For

This high frequency welding embossing machine is best suited for:

1. Footwear Making Machine Manufacturer
2. PVC shoe sole embossing
3. Synthetic leather wallet, belt, or bag welding
4. PVC raincoat or uniform fabrication
5. Blister packaging and plastic file sealing
6. Logo marking and tag creation on synthetic materials
